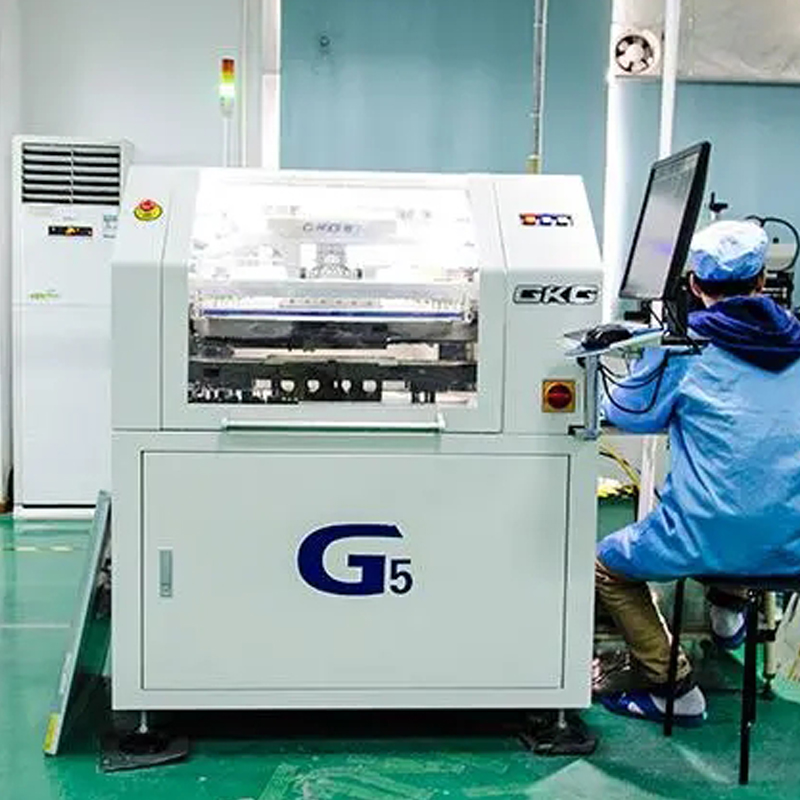

GKG G5 Automatic Printing Machine
1、GKG special adjustment jacking platform
Stable and easy to adjust, it can quickly adjust the pin jacking height of PVB with different thickness.
2、Image and optical system
Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (including the rugged Mark points), applicable for tin plating, coppering, gold plating, tin spraying, FPC and other types PCB with of different colors. With GKG patent mathematical model, able to ensure high accuracy.
3、Cleaning System
GKG cleaning system equipped with three cleaning methods: dry cleaning，wet cleaning，vacuum.which can be combined to use It can also be cleaned by manual if customer do not need to use automatic cleaning to reduce the cleaning time and improve production efficiency.The newly wiping system ensures full contact with the stencil, increased vacuum suction can effectively eliminate the remaining paste in the mesh, which can achieve effective automatic cleaning function.
CCD part and cleaning system is separated when CCD working, CCD part independently move to reduce the servo motor load and
improve the machine speed and accuracy.
4、High adaptability steel mesh frame clamping system
Able to print all kinds of size screen frames,and quickly change models during production line.
5、Guide Rail positioning System
New pattern patented guide rail can detachable programmable flexible side clamp specific to FPC, PCB warpage, perform a unique clamping plate device.Through software programming can automatically stretch out and draw back unaffected PCB thickness.
6、Friendly Chinese/English operation interface
Using Windows XP/win7 operation interface with good man-machine dialogue function,and easy for operator quickly familiar with the operation especially when doing navigation effect of programming file.easy to switch Chinese/English interface, with operation log, fault record /fault self-diagnosis /fault analysis prompt/light alarm and other functions.

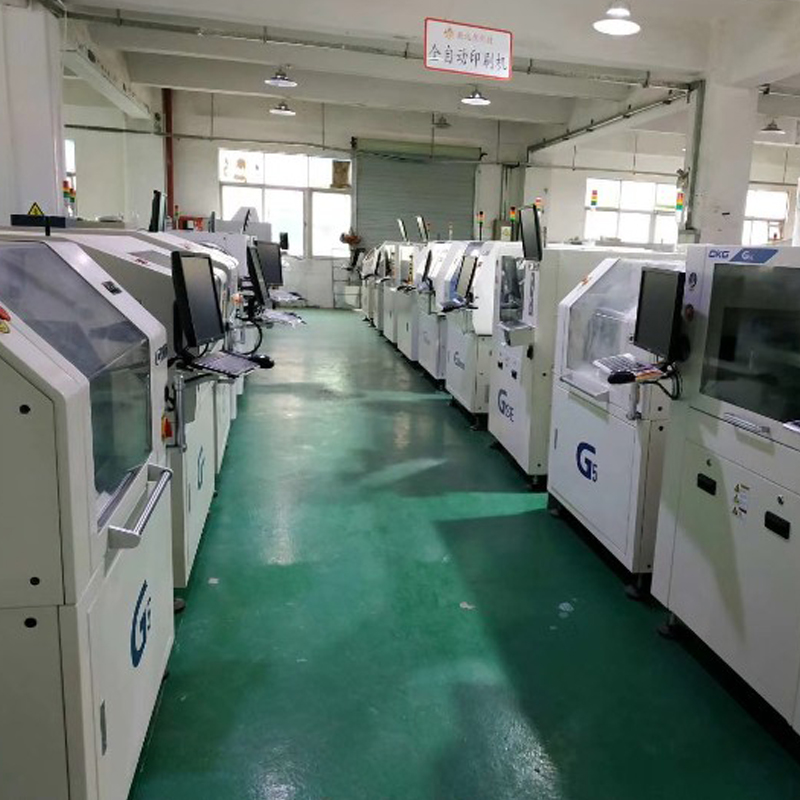

Automatic Printer
Automatic Printer
Automatic Printer
|
|
Model |
G5 |
|
Screen Frames |
Min.Size(mm) |
370*370mm |
|
Max.Size(mm) |
737*737mm |
|
|
Thickness |
20-40mm |
|
|
PCB Size and Transportation
|
Min.Size(L*W mm) |
50*50mm |
|
Max.Size(L*W mm) |
400*340mm |
|
|
Thickness(mm) |
0.4~6mm |
|
|
Transport Height |
900±40mm |
|
|
Transport Speed |
1500mm/s(MAX), Program Control |
|
|
Transport Way |
One Stage |
|
|
Transport Direction |
L-R / R-L / L-L / R-R |
|
|
Conveyor width adjustment |
Auto |
|
|
I/Ov Interface |
SMEMA |
|
|
PCB Location |
Support System |
Magnetic Pin/Support Block/manual Up-down table |
|
Clamping System |
Patented over the top clamping/side clamping |
|
|
Print Head |
Two independent motorised print heads |
|
|
Squeegee Pressure |
0.5-10KG |
|
|
Print Speed |
6-200mm/sec |
|
|
Print Mode |
One/Twice |
|
|
Squeegee Type |
Rubber/steel squeegee blade (Angle 45°/55°/60°) |
|
|
Cleaning System |
Reinforced vacuum absorption,dry,wet,vacuum three modes |
|
|
CCD FOV |
10*8MM |
|
|
Machine Specification |
Operation System |
Windows XP /Win7 |
|
Repeat Position Accuracy |
±0.01mm |
|
|
Printing Accuracy |
±0.025mm |
|
|
Cycle Time |
＜8 sec |
|
|
Air Supply |
4~6 Kgf/cm2 |
|
|
Power Supply |
AC:220±10%, 50/60HZ，2.5KW |
|
|
Weight |
1000Kg |
|
|
Single Size(L*W*H mm) |
1140x1364x1404 |
|
|
Control Method |
PC Control |
|
