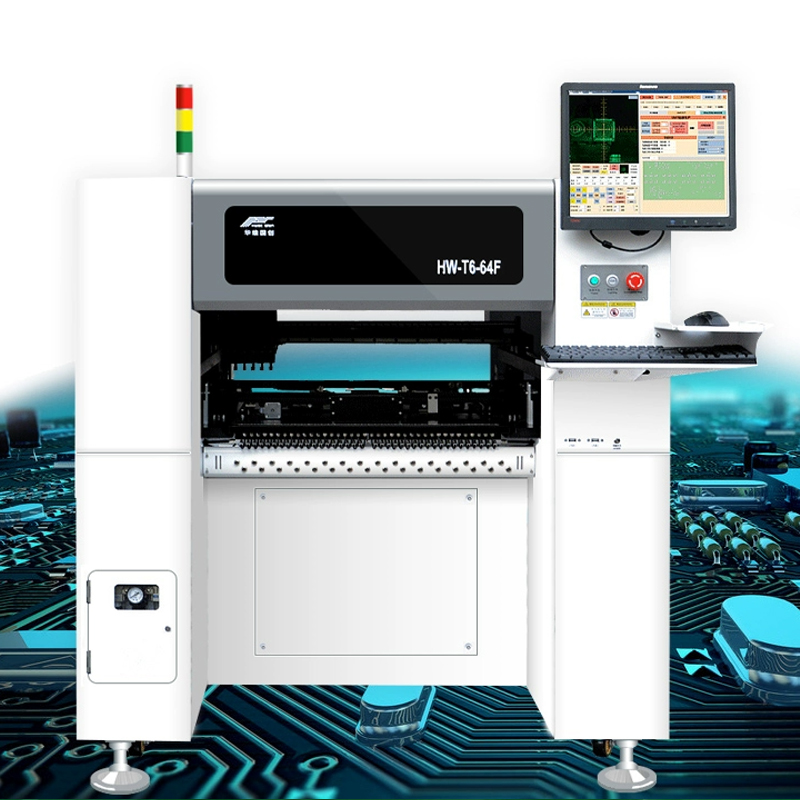

Eight head SMT machine
Advantages of Huawei Guochuang SMT machine: High Stability, X/Y axis adopts imported screw, precision linear guide guide, high precision, ultra-wear-resistant silent long life. Mounting accuracy, 0.03mm in line with international standards, can mount the center distance of 0.3mm components. The mounting head is made of nano-aviation materials with high concentricity, no whitening, wear resistance, good resilience, no static electricity and 99.99% absorption rate of ceramic suction nozzle. The production process adopts industrial standards and meets the requirements of environmental protection. The high speed vacuum system is used to accurately place the surface attachment components on the corresponding PCB pad position. PCB pad transmission track using anti-static conveyor belt, with good body elasticity, not easy to deformation, good bending, high tensile strength, good wear resistance, can effectively play the role of anti-static, in the transmission of electronic components are not affected by static electricity. Track width can be automatically adjusted according to PCB board size. The equipment is equipped with a position sensor, using a three-stage approach to the board, scientific planning of the spare board, the board and the board out of the time, to achieve efficient production of equipment.

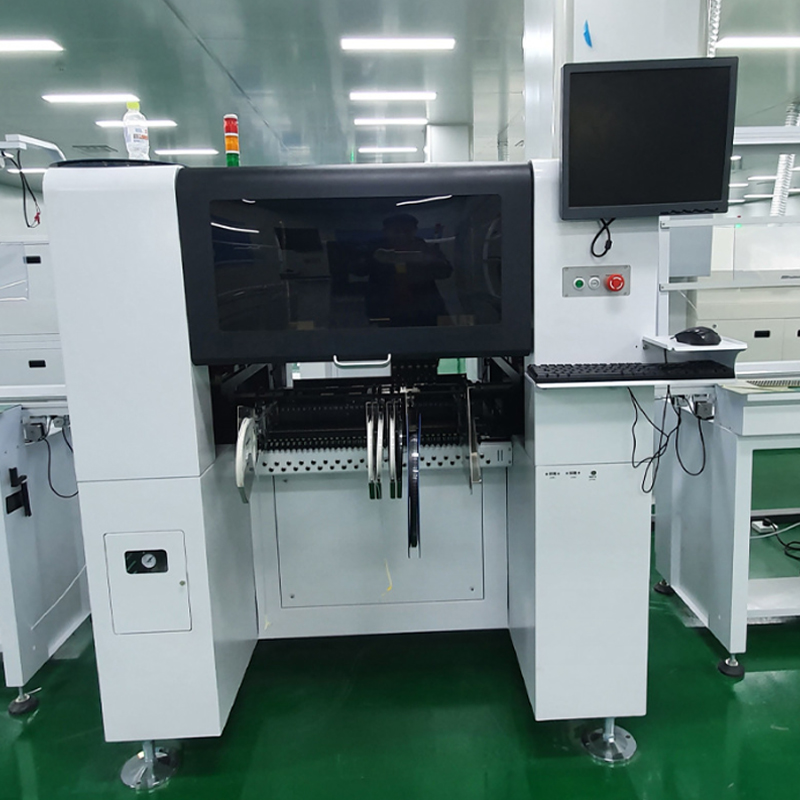

Eight head SMT machine

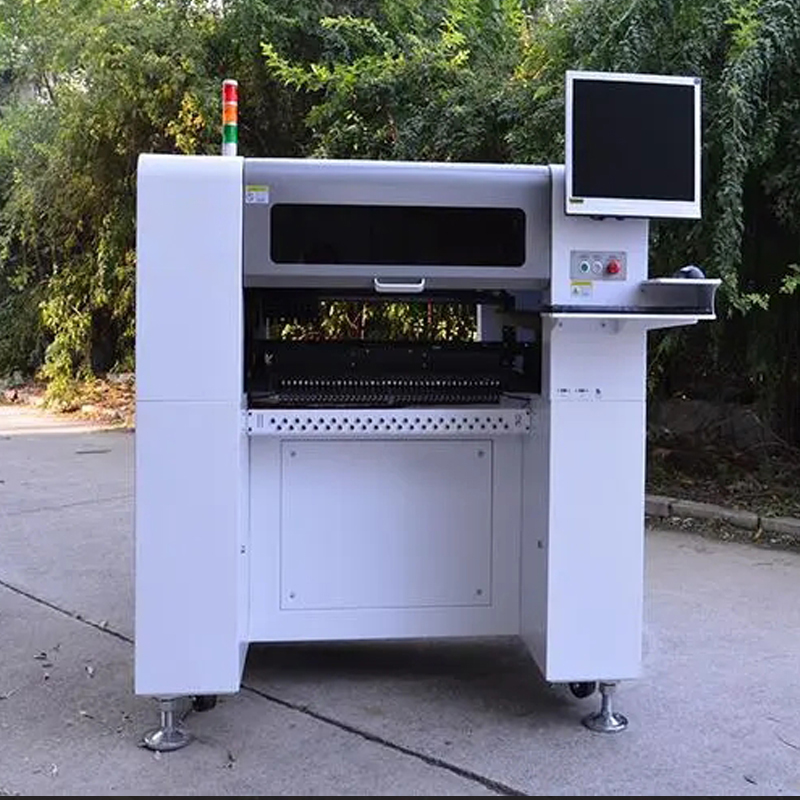

Eight head SMT machine
Eight head SMT machine
Huawei Guochuang chip machine advantages: equipment equipped with industrial grade cameras, better performance and stability. Huawei Guochuan patch visual recognition system can complete the synchronous recognition of the patch components under the multi-channel camera within milliseconds, and correct the recognition results to ensure high-quality acquisition of the component pictures, and transfer more accurate component data and coordinate data to the central processing system, so as to obtain more accurate mounting data. Multi-axis linkage system: The mounting machine adopts gantry structure, under the control of the central processor, through the multi-axis synchronous linkage of X,Y,Z,A axis, to complete the mounting action of the components. Its operation adopts linear interpolation algorithm to achieve fully synchronous control loop AC servo motor drive system, which minimizes internal vibration and ensures smooth movement in X, Y,Z,A axis direction, making component positioning and multi-angle mounting more accurate. The whole system has fast response speed, low noise and smooth operation. Operating system, the new version of intelligent control system combined with the current situation of customer on-site production, to achieve intelligent production, evolved into a more suitable for customer operating habits and production needs of the software system. One-button intelligent programming greatly improves the time cost of first-line operation and improves the production efficiency of the entire line. 90% less time than traditional programming. Programming can be completed in 5 minutes, supporting 24 hours of non-stop production.
