90 Degree Telescopic Turn conveyor
1. The standard precision ball screw electric width adjustment ensures smooth and accurate width adjustment;
2. Adopt professional wear-resistant anti-static flat belt and special aluminum guide rail to ensure smooth connection and stable transportation;
3. Standard equipped with signal lines, which can be connected online with other equipment
4. The connection table with different lengths of guide rails can be made according to customer requirements
5. The work surface is equipped with anti-static rubber to better prevent static electricity;
6. The transmission motor adopts two 42*48 stepper motors.
2. Adopt professional wear-resistant anti-static flat belt and special aluminum guide rail to ensure smooth connection and stable transportation;
3. Standard equipped with signal lines, which can be connected online with other equipment
4. The connection table with different lengths of guide rails can be made according to customer requirements
5. The work surface is equipped with anti-static rubber to better prevent static electricity;
6. The transmission motor adopts two 42*48 stepper motors.

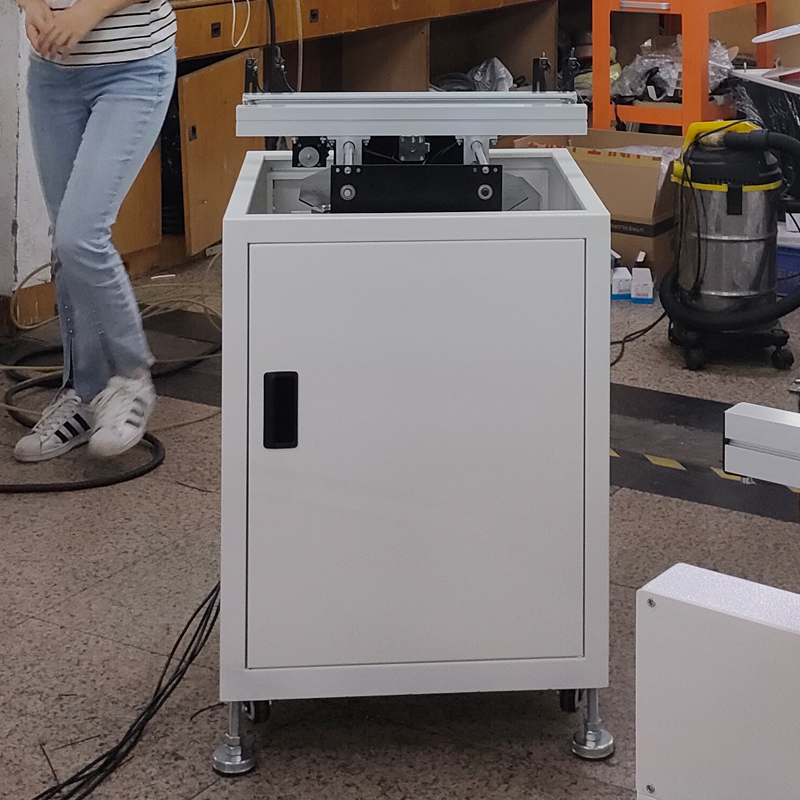

90 Degree Telescopic Turn conveyor
90 Degree Telescopic Turn conveyor
90 Degree Telescopic Turn conveyor
|
Outline dimensions |
600*600*1250mm |
|
PCB width |
50-350mm |
|
Transport height |
900±20mm |
|
PCB transport direction |
L-R(R-L) |
|
PCB transport velocity |
0~2000mm |
|
Transmission power |
Stepper Motors and Stepper Drivers |
|
Rotation Mode |
Stepper Motors and Stepper Drivers |
|
Power supply |
AC220V1P 50/60Hz |
|
Power consumption |
Approx.100W |
|
Track length |
600mm |
|
Control mode |
PLC+ touch screen |
|
Weight |
About 100KG |
|
Communication interface |
adopts two-wire cable |
|
Monorail |
1 is the fixed side, 2 is the movable side |
※ The top safety cover can be opened to facilitate the handling of machine hardware during maintenance
※ Easy to use intelligent touch screen function control interface
※ Adjustable Angle speed to ensure that PCB board will not slide
※ Stable and balanced width adjustment device (manual control screw adjustment)
※ Smaller machine footprint
Compatible SMEMA interface
※ Easy to use intelligent touch screen function control interface
※ Adjustable Angle speed to ensure that PCB board will not slide
※ Stable and balanced width adjustment device (manual control screw adjustment)
※ Smaller machine footprint
Compatible SMEMA interface
